EATON BUSSMANN SERIES
#BK/SC-5

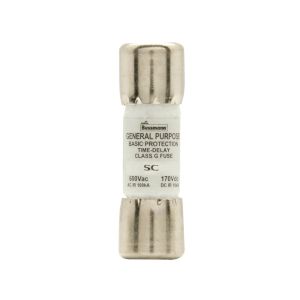

Bussmann Class G Fuse, Characteristics: Current Limiting, Fast Acting, 600 VAC, 170 VDC, 5 A, 1.31 in. L, 0.41 in. Dia
SKU
#
05171275041
Specifications
Fuse Type/Class:
Class G Fuse
Characteristics:
Current Limiting, Fast Acting
Interrupting Rating:
100 kA at 600 VAC, 10 kA at 170 VDC
Voltage:
600 VAC, 170 VDC
Amps:
5 A
Length Overall:
1.31 in.
Diameter:
0.41 in.
Connection:
Ferrule
Indicators:
Non-Indicating
Description
For fusible branch panel boards and HV branch circuit protection applications.
Additional Info: UL-248-5, UL-E4273, CSA C22.2 No. 248.5, CSA 53787, CE-marked
