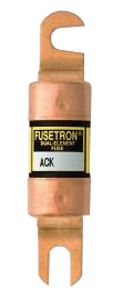

EATON BUSSMANN SERIES
#ACK-120A
Lift Truck and Battery Charger Fuse, Time Delay, Slow Blow, 72VDC, 120A, 10kA IR
SKU
#
05171257833
Manufacturer Series:
ACK
Specifications
Fuse Type/Class:
Stud Mounted
Characteristics:
Time Delay, Slow Blow
Voltage:
72V DC
Amps:
120A
Interrupting Rating:
10kA IR
Length Overall:
3.75 in.
Diameter:
1.15 in.
Description
Stud Mount Limiters, Vehicle: Fuse Type/Class - Stud Mounted; Characteristics - Time Delay, Slow Blow; Voltage - 72VDC; Amps - 120A; Interrupting Rating - 10kA IR; Length Overall - 3.75 in.; Diameter - 1.15 in.; Additional Information - Termination Style: Bolt Down, Without Indicator; Manufacturer Series - ACK
Additional Info: Termination Style: Bolt Down, Without Indicator
