EATON BUSSMANN SERIES
#HEB-1K0200

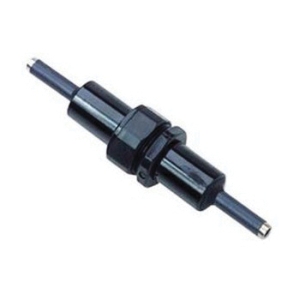

UL 13/32 in. x 1-1/2 in. In-Line Fuse Holder 30AA 1P
SKU
#
05171210085
Manufacturer Series:
HEB
Specifications
Holder Type:
In-Line Fuse
Fuse:
UL 13/32 in. x 1-1/2 in.
Voltage:
600V
Amps:
30A
Poles:
1P
Mount:
Free Hanging
Terminal Type:
Crimp
AWG Line:
(1)6
Description
Submersible, single-pole in-line fuse holders for UL 13/32 x 1-1/2 in. supplemental fuses. Available in non-breakaway and breakaway versions with an array of terminal options to meet application needs. Breakaway versions come with insulating boots to provide submersibility per UL IP67. Nonbreakaway versions require ordering optional insulating boots for submersibility.
Additional Info: Color: Black, Connection: Copper Set-Screw
