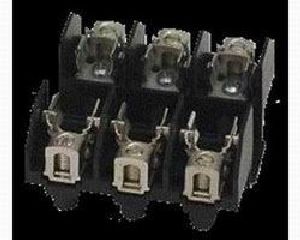

MARATHON #R30A2B

Class R Standard Block 30A 2P

SKU # 78433710770

RoHS Compliant

Specifications

Block Type: Standard

Fuse Type: Class R

Rating - Volts: 250V AC/DC

Rating - Amps: 30

Poles: 2P

Wire Connector: Box Lug

Wire Size: 6 - 14 Cu

Fuse Clip: Reinforced Spring Clip

Base Material: Thermoplastic

Additional Info: Temperature Range: -40 to 125 deg C (-40 to 257 deg F)
