EATON BUSSMANN SERIES
#T60030-2SR

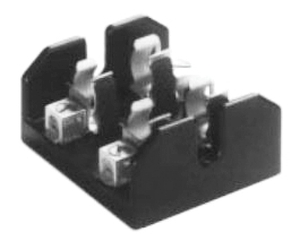

Class T Fuse Block Block 30AA 2P
SKU
#
05171214808
Manufacturer Series:
T600
Specifications
Country of Origin:
Mexico - Subject to change
Block Type:
Fuse Block
Fuse Type:
Class T
Rating - Volts:
600V
Rating - Amps:
30A
Poles:
2P
Wire Connector:
Screw
Wire Size:
10 Cu
Base Material:
Thermoplastic
Description
Midget Fuse Blocks: Block Type - Fuse Block; Fuse Type - Class T; Rating - Volts - 600V; Rating - Amps - 30A; Poles - 2P; Wire Connector - Screw; Wire Size - 10 Cu; Base Material - Thermoplastic; Additional Information - Materials: Glass Polyester, Phenolic on 600A, UL Flammability: 94V0, Withstand Rating: 200000A RMS Sym, Size: 3.19 in. L x 2.59 in. W x 1.44 in. H; Manufacturer Series - T600
Additional Info: Materials: Glass Polyester, Phenolic on 600A, UL Flammability: 94V0, Withstand Rating: 200000A RMS Sym, Size: 3.19 in. L x 2.59 in. W x 1.44 in. H
