O-Z/GEDNEY
#7AS20C

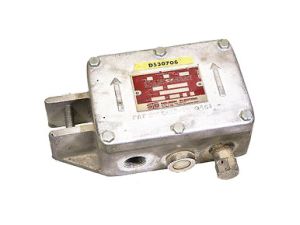

Inertia Switch, 2 NO-2 NC
SKU
#
78312604758
Manufacturer Series:
7A
Specifications
Country of Origin:
United States - Subject to change
Type:
Inertia Switch
Application:
Oil Well Pumping Units
Poles/Contacts:
2 NO-2 NC
Current Rating - nominal:
20A at 115/230/460V AC/0.5A at 115V DC
Description
O-Z/Gedney Class 530 inertia switches are unidirectional shut down devices that operate upon sharp impact and provide protection for oil well pumping units. When installed properly, the switch will shut down the pump engine or motor upon impact occurring from sucker rod breakage. An external adjustment screw varies the impact trip level of the switch. The desired setting should prevent tripping on startup and normal operation, but trip upon malfunction.
