HUBBELL
#HBL15W33A

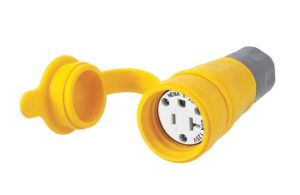

Straight Blade, Watertight Connector, 20A, 125VAC 1 Phase, 2P 3W Thermoplastic Elastomer Yellow
SKU
#
78358513126
Specifications
Country of Origin:
China - Subject to change
Connector Type:
Straight Blade, Watertight
Rating - Amps:
20A
Rating - Volts:
125VAC 1 Phase
Number of Poles:
2P
Number of Wires:
3
Ground:
Grounding
NEMA:
5-20R
Cord Diameter:
0.375 - 0.625 in.
Material:
Thermoplastic Elastomer
Color:
Yellow
Grade:
Industrial
Description
Straight Blade Connectors: Connector Type - Straight Blade, Watertight ; Rating - Amps - 20A; Rating - Volts - 125VAC 1 Phase; Number of Poles - 2P; Number of Wires - 3W; Ground - Grounding; NEMA - 5-20R; Cord Diameter - 0.375 - 0.625 in.; Material - Thermoplastic Elastomer; Color - Yellow; Grade - Industrial; Additional Information - Environmental Rating: NEMA 3R, 3RX, 4, 4X, 6, 6P, IP65, IP66, IP67, Operating Temperature: -40 to 60 deg C
Additional Info: Environmental Rating: NEMA 3R, 3RX, 4, 4X, 6, 6P, IP65, IP66, IP67, Operating Temperature: -40 to 60 deg C
