ARLINGTON INDUSTRIES
#RV135

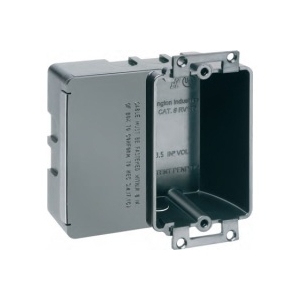

General Switch Outlet Box Plastic
SKU
#
01899769111
Specifications
Country of Origin:
United States of America - Subject to change
Type:
Switch Outlet Box
Application:
General
Number of Gangs:
1
Depth:
1.57 in.
Width:
4 in.
Height:
3.38 in.
Capacity - cu-in:
13.5
Mounting Hardware:
Ears
Cable Entry:
(6) NM Integral Clamps
Material:
Plastic
Device Mounting Holes:
Standard
Description
Extensions: Type - Switch Outlet Box; Application - General; Number of Gangs - 1; Depth in inch - 1.57; Width in inch - 4.00; Height in inch - 3.38; Capacity - cu-in - 13.5; Mounting Hardware - Ears; Cable Entry - 6 NM Integral Clamps; Material - Plastic; Device Mounting Holes - Standard; Additional Information - Application: 2"x2" Stud Wall w/0.25" Wall Board. Side Cube Box
Additional Info: Application: 2"x2" Stud Wall w/0.25" Wall Board. Side Cube Box
