MERSEN
#CEP-FS30CC1

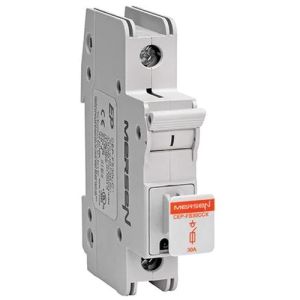

MERSEN Disconnect Switch , Fusible, Class CC Fuse, 347 VAC AC, 125 VDC DC, 1, 30 A, 0.5 HP
SKU
#
78200150042
Specifications
Switch Type:
Disconnect Switch
Fusible - Non-Fusible:
Fusible
Fuse Type:
Class CC
Rating - Volts AC:
347 VAC
Rating - Volts DC:
125 VDC
Number of Poles:
1
Rating - Amps:
30 A
Rating - Horsepower:
0.5 HP
Description
MERSEN compact fused disconnect incorporates the switch functionality with the high protection level of a fuse. The switch accepts UL Class CC fuses up to 30 A. In addition to this, the compact fused disconnect is UL 98 listed and suitable for use as main/feeder device and, in conjunction with CC fuses, is rated for branch circuit protection. It has a smaller footprint compared to a traditional Class CC disconnect with a max interrupting-rating of 200 kA.
Additional Info: UL-98, CSA certified
