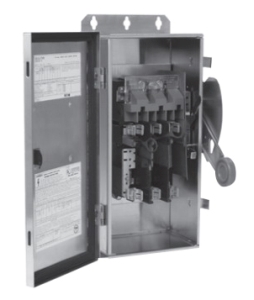

EATON
#DH326FDK-GCL
Switch, Single Throw; Heavy Duty Safety; Class H; 3 Wire; 600A
SKU
#
78211488966
Manufacturer Series:
Series K
Specifications
Rating - Amps:
600
Rating - Horsepower:
75HP/3Phase 240V AC Standard, 200HP/3Phase 240V AC Time Delay
Enclosure Size:
63.00 in. H x 23.00 in. W x 12.75 in. D
Switch Type:
Single Throw, Heavy Duty Safety
Fusible - Non-Fusible:
Fusible
Fuse Type:
Class H
Rating - Volts AC:
240
Rating - Volts DC:
250
Number of Poles:
3P
Number of Wires:
3
Enclosure Rating:
NEMA 12
Enclosure Construction:
Painted Galvanized Steel
Description
Mill duty safety switches are offered for the toughest in heavy commercial and industrial applications. They are available in a NEMA 12 enclosure, industrial dust-tight or stainless steel NEMA 4X enclosure. Available from 30A to 600A and as fusible or non-fusible. Suitable for service entrance use. They have a factory-installed ground lug, copper terminal lugs and fuse pullers provided on switches through 200A.
Additional Info: Without Neutral
