EATON
#DH361UDK2LSYEL

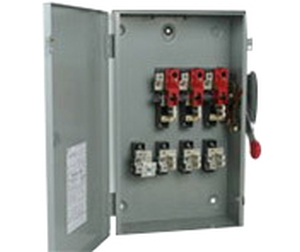

Switch, Single Throw; Heavy Duty Safety; 3 Pole; 3 Wire; 30A
SKU
#
49103099838
Manufacturer Series:
Series K
Specifications
Switch Type:
Single Throw, Heavy Duty Safety
Fusible - Non-Fusible:
Non-Fusible
Rating - Volts AC:
600
Rating - Volts DC:
250
Number of Poles:
3P
Number of Wires:
3
Rating - Amps:
30
Rating - Horsepower:
3HP/1Phase 240V AC, 7.5HP/1Phase 480V AC, 10HP/1Phase 600V AC, 10HP/3Phase 240V AC, 20HP/3Phase 480V AC, 30HP/3Phase 600V AC, 5Hp/250V DC
Enclosure Rating:
NEMA 12
Description
Eaton Heavy Duty Non-Fusible Safety Switches provide a means to manually connect or disconnect the load from the source. The heavy duty non-fusible safety switch is available in a variety of enclosures including NEMA 1, 3R, 12, 4 and 4X. Switches are 100 percent load-break and 100 percent load-make rated and are suitable for service entrance use. Available from 30A to 1200A.
