SIEMENS
#3LD2165-5VD51-0AE2

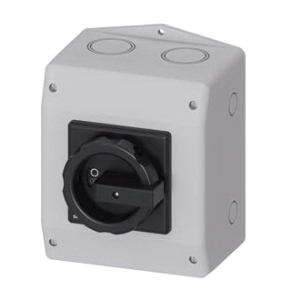

Sentron Switch, Rotary Disconnect; IP65 Enclosure; 6 Pole; 25A
SKU
#
04089255303
Manufacturer Series:
3LD
Specifications
Switch Type:
Rotary Disconnect Switch
Fuse Provision:
Non-Fusible
Rating - Volts AC:
690VAC
Number of Poles:
6P
Rating - Amps:
25A
Rating - Horsepower:
3HP/120V, 7.5HP/240V, 10HP/480V, 15HP/600V at 3Phase, 2HP/120V, 3HP/240V at 1Phase
Enclosure Rating:
IP65
Enclosure Construction:
Fiberglass Reinforced Polycarbonate
Enclosure Size:
7.91 in. H x 5.75 in. W x 5.87 in. D
Description
SIE 3LD2165-5VD51-0AE2 MAIN-CTR/EM.
