LEVITON
#DS30-FAX

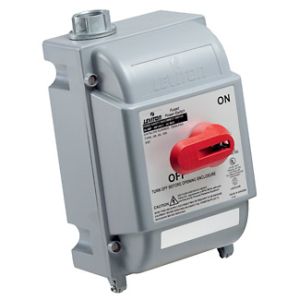

Switch, Rotary Disconnect; IP67 Enclosure; 3 Pole; 30A
SKU
#
07847708179
Specifications
Country of Origin:
Czechia - Subject to change
Switch Type:
Rotary Disconnect Switch
Fuse Provision:
Fusible
Rating - Volts AC:
600V
Number of Poles:
3P
Rating - Amps:
30A
Rating - Horsepower:
7.5HP-120/208V-240V 15HP-480V 20HP-600V
Enclosure Rating:
IP67, Watertight
Enclosure Construction:
Stainless Steel
Enclosure Size:
11.59" H x 8.78" W x 7.95 " D
Description
Additional Info: UL/CSA: Factory Installed; N.O. 10A; Early Break-Late Make: Class J Fuses
