EATON
#ER54030UW

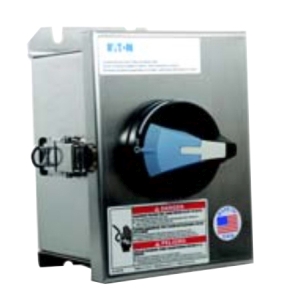

Switch, Rotary Disconnect; 4 Pole; NEMA 4X Enclosure; 30A
SKU
#
78668549371
Manufacturer Series:
R5
Specifications
Rating - Amps:
30A
Rating - Horsepower:
7.5HP/208V at 3Phase, 7.5HP/240V at 3Phase, 15HP/480V at 3Phase, 25HP/600V at 3Phase
Switch Type:
Rotary Disconnect Switch
Fuse Provision:
Non-Fusible
Rating - Volts AC:
600VAC
Number of Poles:
4P
Enclosure Rating:
NEMA 4X
Enclosure Construction:
Stainless Steel
Enclosure Size:
9.95 in. H x 7.33 in. W x 4.23 in. D
Description
Eaton enclosed R5 series rotary disconnects provide users with horsepower-rated switches in enclosures for most motor applications. They meet the requirements for a separate disconnect means within sight of all motor loads and are rated for making and breaking loads. Handle mechanism is padlockable in the OFF position (up to 3 padlocks) to meet OSHA lockout requirements.
