EATON BUSSMANN SERIES
#RDF60J-3

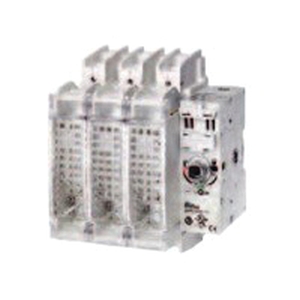

Rotary Disconnect Switch Rotary Handle/Shaft 600V AC/250V DC 400A 3P
SKU
#
05171240284
Specifications
Type:
Rotary Disconnect Switch
Operator:
Rotary Handle/Shaft
Operator Position:
Front/Side
Fuse Provision:
Fusible Class J
Poles:
3P
Voltage:
600V AC / 250V DC
Cont. Amps:
400A
Mounting:
Panel or DIN Rail
Terminals:
Lug
Terminal Conductor Size:
No. 12-10 Sol, No. 12-1 Str
Terminal Conductor Type:
Cu
Description
Rotary Disconnect Switches: Type - Rotary Disconnect Switch; Operator - Rotary Handle/Shaft; Operator Position - Front/Side; Fuse Provision - Fusible Class J; Poles - 3; Voltage - 600V AC/250V DC; Cont. Amps - 400A; Mounting - Panel or DIN Rail; Terminals - Lug; Terminal Conductor Size - No. 12-10 Sol, No. 12-1 Str; Terminal Conductor Type - Cu; Additional Information - Operating Temperature: -20 to 70 deg C, SCCR: 200kA, Switch Type: Standard
Additional Info: Operating Temperature: -20 to 70 deg C, SCCR: 200kA, Switch Type: Standard
