SIEMENS
#3NP1143-1DA10

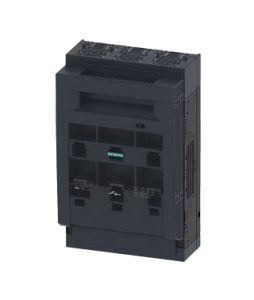

Fuse Disconnect Switch, 690V, 250A, 3P, 16-150 mm-sq
SKU
#
04089257740
Manufacturer Series:
3NP1
Specifications
Country of Origin:
Germany - Subject to change
Type:
Fuse Disconnect Switch
Operator:
Cover Handle
Poles:
3P
Fuse Clip:
LV HRC Fuse
Fuse Size:
2.12x7.12 in. (54.0x181.0 mm)
Rating - Volts:
690V
Rating - Amps:
250A
Mounting:
Plate, Floor
Terminal - Wire Size:
16-150 mm-sq
Dimensions:
306.00 mm H x 183.70 mm W x 115.00 mm D
