EATON
#E2LE3600MWA06U66

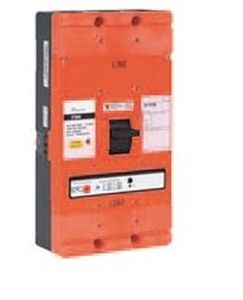

Circuit Breaker, Mining Service; 3P; 600V AC
SKU
#
78211368148
Manufacturer Series:
Series C E2
Specifications
Country of Origin:
United States - Subject to change
Type:
Mining Service Circuit Breaker
Trip Type:
Electronic Interchangeable Trip
Voltage Max:
600V AC
Poles:
3P
kA IR 240V AC:
65
kA IR 480V AC:
35
kA IR 600V AC:
25
kA IR 250V DC:
22
Frame Type:
L
Dimensions:
WxDxH: 8.25 x 4.375 x 12.5 in.
Description
State-of-the-art E2 mining service breakers incorporate the rigid specifications and testing procedures developed by a focus group led by engineers from several large coal companies and Eaton design engineers. Additionally, the performance of these breakers was proven and verified during hundreds of hours of field testing in harsh mine environments.
