EATON
#HJD3225

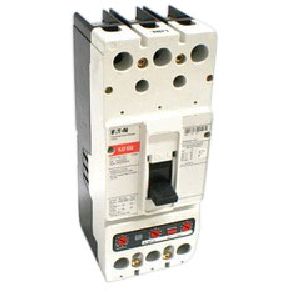

Circuit Breaker, Thermal Magnetic; 600V AC/250V DC; 3P; 225A
SKU
#
78667951203
Manufacturer Series:
HJD
Specifications
Amps:
225A
Country of Origin:
Dominican Republic - Subject to change
Type:
Thermal Magnetic Breaker
Voltage Maximum:
600V AC/250V DC
kA IR 600V AC:
35
Number of Poles:
3P
kA IR 240V AC:
100
kA IR 480V AC:
65
KA IR VDC:
22
Frame Type:
J-Frame
Description
Engineered for supplementary protection and branch circuit protection. Best-in-class quality, safety, and reliability provide optimum protection of people, plant, and installations. Used for internal and external receptacles, branch circuit protection, external motors and heating, refrigeration equipment and air conditioning.
