EATON
#JGS4125FAG
Circuit Breaker, Thermal Magnetic; 600V AC; 4P; 125A
SKU
#
78211396421
Manufacturer Series:
Series G
Specifications
Amps:
125A
Country of Origin:
Dominican Republic - Subject to change
Type:
Thermal Magnetic Interchangeable Trip Breaker
Dimensions WxHxD:
5.34x7.00x3.57 in (136.0x178.0x91.0 mm)
Frame Type:
J250-Frame
Voltage Maximum:
600V AC
Number of Poles:
4P
Terminals:
Line and Load Lugs
Description

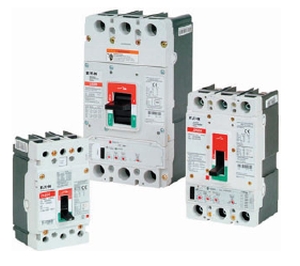

Series G Molded Case Circuit Breakers are designed for circuit protection needs across the globe. A complete line of user-friendly accessories and high performance interruption ratings meet a host of different application, industry and regional requirements. Current ratings range from 15A to 2500A with voltages up to 690 VAC. Thermal magnetic and electronic trip units are available as well as residual ground fault and 30 mA earth leakage protection options.
Additional Info: Trip Unit: Adjustable Thermal and Magnetic Trip. Magnetic Range: 625-1250A
