EATON
#HMDL2300

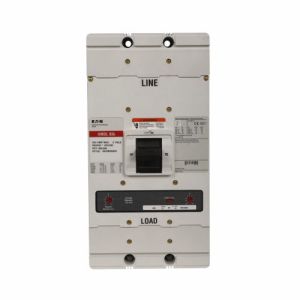

Circuit Breaker, Molded Case; 600V AC/250V DC; 2P; 300A
SKU
#
78211458585
Manufacturer Series:
Series C
Specifications
Amps:
300A
Type:
Molded Case Circuit Breaker
Voltage Maximum:
600V AC/250V DC
Number of Poles:
2P
kA IR 240V AC:
100
kA IR 480V AC:
65
kA IR 600V AC:
35
KA IR VDC:
25
Terminals:
Line and Load Lugs
Dimensions WxHxD:
8.25x16.00x4.06 in. (210x406x103 mm)
Frame Type:
M-Frame
Description
Eaton molded case switches are used as compact switches in applications requiring high current switching capabilities. Molded case switches are constructed of circuit breaker components and are of the high instantaneous automatic type.
Additional Info: Trip Unit: Electronic Interchangeable
