PHOENIX CONTACT
#2891036

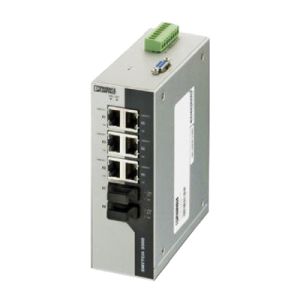

Industrial Ethernet Switch, (6) RJ45 TP 10/100 Mbps Ports
SKU
#
78037361120
Specifications
Type:
Industrial Ethernet Switch
Ports - RJ45:
(6) RJ45 TP 10/100 Mbps
Ports - Other:
(2) FO SC Multimode 100 Mbps Full Duplex
Managed/Unmanaged:
Managed
Mounting:
DIN Rail
Voltage - Nominal:
24V DC
Power Consumption:
7.92 w
Operating Temperature:
-40° to +75°C
Status Indication:
LED (US1, US2 Redundant Voltage Supply, Link/Activity per Port)
Voltage Range:
12 to 48 VDC
Dimensions:
HxWxD: 146.4 x 54.4 x 125mm
Description
FL SWITCH 3000 managed industrial EtherNet switches combine extensive network performance and security features with complete IEEE redundancy (STP/RSTP/MST) and 15 ms recovery time extended ring redundancy. Unique web customization provides a simplified user interface for today's applications and scalable functionality for future needs. A comprehensive mix of fiber optic and copper port connections meets a wide range of applications.
