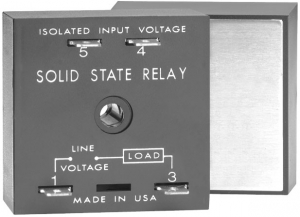

SSAC BY LITTELFUSE #SIR1B6B4

Solid State Relay, 6A SPST-NC 150V AC/DC Control Voltage

SKU # 78093598845
Please enter a valid quantity
Unit of Sale: Each Order in multiples of: 1
Unable to add item(s) to cart. Please try again.

Solid State Relays: Type - Solid State Relay; Voltage Rating - Control - 150V AC/DC; Voltage Rating - Load - 120V AC; Current Rating - Load - 6A; Switching Function - Random; Contact Form - SPST-NC; Mounting - Surface Mount; Terminals - Quick Connect; Voltage Range - Control - 90-150V AC/DC; Current Range - Load - 0.05-6A; Dielectric Strength - 2000V AC; Temperature Rating - -20 to 60 deg C (-4 to 140 deg F); Dimensions - nominal - 2.00x2.00x1.08" (50.8x50.8x27.4mm); Additional Information - Terminal Size: 0.25"; Manufacturer Series - SIR1 Series

Additional Info: Terminal Size: 0.25"
