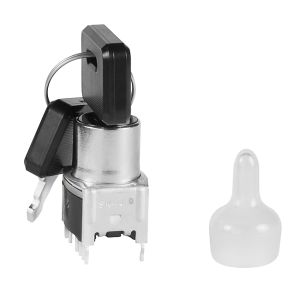

Keylock Switch, 250Vac, 3A/125Vac, 1A/250Vac, 14.3mA/28Vdc, SP3T, On-On-On (maint)

Description

Keylock Switches: Type - KeyLock Switch; Circuit Configuration - SP3T; Circuit Operation - On-On-On (maint); Amps/Vdc - 14.3mA/28Vdc; Voltage - 28Vac/dc; Terminals - PC-Terminal; Terminal Size - 0.028 in Dia; Contacts - Copper Gold Plated; Key Removal Position - CCW, Center, CW; Mounting Type - Panel/PC Board; Mounting Size - 0.47 in Round; Temperature Range - -13 to 158 deg F (-25 deg to 70 deg C); Additional Information - Key Code: AT4080, Two Flat Key Furnished, Miniature Process Sealed, PC Terminal Type: Straight with Bracket, Amps/Vac: 14.3mA/28Vac; Manufacturer Series - SK Series
