EATON

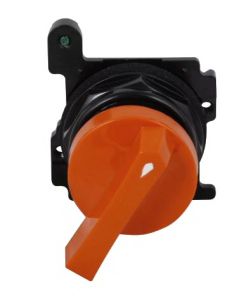

Operator, Selector Switch; Metal; 4 Positions; 30.5mm
(5 Product Options) Manufacturer Series: E34
- Type: Selector Switch Operator
- Size: 30.5mm
- NEMA: 4,4X,13
- Operating Cap: Lever
Part #
-
-
Specifications
Type:
Selector Switch Operator
Size:
30.5mm
NEMA:
4,4X,13
Operating Cap:
Lever
Bezel/Housing:
Metal, Epoxy-coated
Positions:
4
Throw:
40-deg, Left-Right
Contact Mode:
Maintained
Cam Code:
7
Description
Eaton E34 Series 30.5 mm pushbutton line features the same rugged die cast construction of our 10250T line with an additional two-layer 100 percent solid thermosetting cathodic epoxy coating. This coating provides a flat black smooth, consistent, corrosio
