O-Z/GEDNEY
#LB250DCGSS

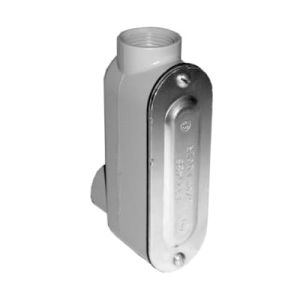

Appleton™ Conduit Outlet Body, LB Configuration, 2-1/2 in. Hub, Set Screw Installation, For Rigid/IMC Conduits, Die-Cast Aluminum
SKU
#
68785500157
Specifications
Type:
Conduit Outlet Body
Configuration:
LB
Hub Size:
2-1/2 in.
Installation:
Set Screw
Application:
Rigid/IMC Conduits
Cover:
Cover Included
Material:
Die-Cast Aluminum
Number of Hubs:
2
Hub Placement:
90 deg.
Access:
Back
Description
Provides access to conductors for pulling, splicing, maintenance and future changes and upgrades and allows connection of straight conduit runs, branch conduit runs and 90 degree bends.
Additional Info: UL-514A, UL-E53330, NEC certified, CEC certified, CSA C22.2 No. 18.3, NEMA FB-1
