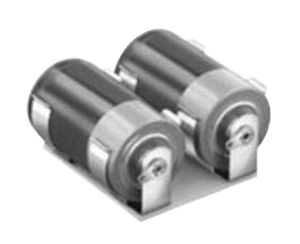

Battery Holder; C; 2 Cells; Solder Lug; Steel; 0.875-1.125 in. Dia x 1.75 in. W

Description

Battery Holders and Mounts: Type - Battery Holder; Battery Style - C; Number of Cells - 2; Battery Diameter - 0.875 - 1.125 in. (22.25 - 28.57 mm); Battery Width - 1.750 in. (44.5 mm); Contact Type - Insulated Contact; Contact Material - Tin Plated Brass; Terminals - Solder Lug; Mounting - Rivet, Clip; Base Material - Steel; Dimensions - 2.062 x 1.044 in. (52.37 x 26.50 mm); Generic Reference - ANSI 15A, IEC LR6, NEDA 15, 15C, 15D, 15F, 15M, 15NC, 221, 1101M, 1113M, 1306AP, 1306M, 1314M, 1606M; Additional Information - Height to Battery Center: 0.625 in., Mounting Hole Distance: 1.187 in., Mounting Hole Center to Center: 1.343 in.; Manufacturer Series - 2100

Additional Info: Height to Battery Center: 0.625 in., Mounting Hole Distance: 1.187 in., Mounting Hole Center to Center: 1.343 in.
