SIEMENS
#8WH20001AG08

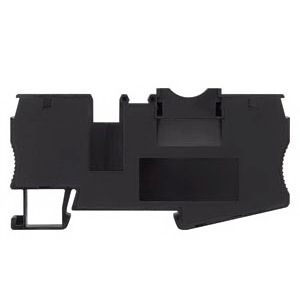

ALPHA FIX Fused Terminal Block, 400V, 30.0A, 4.0mm2, Spring Clamp, Cast Copper, Black, 8.2 mm W
SKU
#
66264316895
Manufacturer Series:
8WH
Specifications
Type:
Fused Terminal Block
Fuse Provision:
5x20, 6.3x32mm
Rating - Voltage:
400V
Rating - Current:
30.0A
Wire Range:
4.0mm2
Contact Style:
Spring Clamp
Housing Finish:
Black
Mounting:
35mm DIN Rail
Block Width:
0.32 in. (8.2mm)
Description
Terminal Fused or Disconnect Blocks: Type - Fused Terminal Block; Fuse Provision - 5x20, 6.3x32mm; Rating - Voltage - 400V; Rating - Current - 30.0A; Wire Range - 4.0mm2; Contact Style - Spring Clamp; Housing Finish - Black; Mounting - 35mm DIN Rail; Block Width - mm - 8.2 mm; Block Width - in - 0.32 in.; Additional Information - Without LED ; Manufacturer Series - ALPHA FIX 8WH
Additional Info: Without LED
