EATON
#XBUT6FBNL60

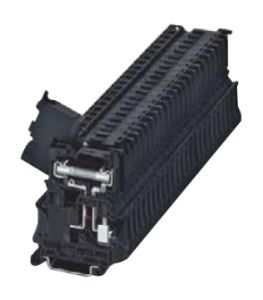

Cutler-Hammer® Fused Terminal Block, 6.3x32mm, I.E.C, 400 V, 10 A
SKU
#
78211690527
Manufacturer Series:
Series UT
Specifications
Type:
Fused Terminal Block
Fuse Provision:
6.3x32mm
Configuration/Wiring:
Single Tier 2-Circuit 4-Wire
Construction Style:
I.E.C
Rating - Voltage:
400V
Rating - Current:
10 A
Wire Range:
24 to 8 AWG
Contact Style:
Screw
Housing Material:
Polyamide 66
Housing Finish:
Black
Mounting:
35mm DIN Rail
Temperature Rating - max:
125°C (257°F)
Temperature Rating - min:
-40°C (-40°F)
Block Width:
0.32 in.
Description
EATON's terminal blocks are designed for long use under demanding conditions. The XB Series of IEC Terminal Blocks offers a full line of terminal blocks complete with universal accessories across three connection technologies, screw, spring cage and Insul
