EATON BUSSMANN SERIES
#F520DDST-GY

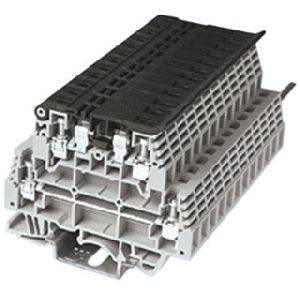

Terminal Block, 300V, 16A, 22-10 AWG, IEC Construction, F520DDST Model, Double Tier 2-Circuit
SKU
#
05171236473
Manufacturer Series:
F520 Series
Specifications
Country of Origin:
China - Subject to change
Type:
Fused Terminal Block
Fuse Provision:
5x20 mm
Configuration/Wiring:
Double Tier 2-Circuit
Construction Style:
IEC
Rating - Voltage:
300V
Rating - Current:
16A
Wire Range:
22-10 AWG
Model Type:
F520DDST
Contact Style:
Screw Clamp
Housing Finish:
Gray
Block Width:
0.31 in. (8mm)
Description
Terminal Fused or Disconnect Blocks: Type - Fused Terminal Block; Fuse Provision - 5x20 mm; Configuration/Wiring - Double Tier 2-Circuit; Construction Style - IEC; Rating - Voltage - 300V; Rating - Current - 16A; Wire Range - 22-10 AWG; Model Type - F520DDST; Contact Style - Screw Clamp; Housing Finish - Gray; Block Width - mm - 8.0 mm; Block Width - in - 0.31"; Manufacturer Series - F520 Series
