PHOENIX CONTACT
#3031555

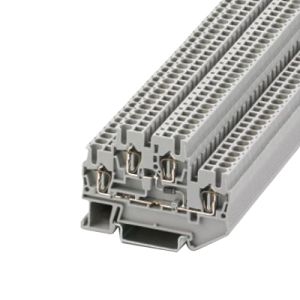

Component Terminal Block, 500 V, 22 A, 28 to 12 AWG
SKU
#
78037389771
Specifications
Type:
Component Terminal Block
Component Type:
Integrated 1N4007 Diode
Component Rating:
0.5 A, 1300 V Reverse
Configuration/Wiring:
Double Tier 2 Circuit 4 Wire
Construction Style:
IEC
Rating - Voltage:
500 V
Rating - Amps:
22 A
Wire Range:
28 to 12 AWG
Wire Terminal:
Spring Cage
Housing Material:
Polyamide
Housing Finish:
Gray
Mounting:
NS35/7.5 DIN Rail
Temperature Rating - max:
105°C
Temperature Rating - min:
-60°C
Block Width:
5.2mm
Block Height:
47.5mm
Block Length:
67.5mm
