PHOENIX CONTACT
#3206432

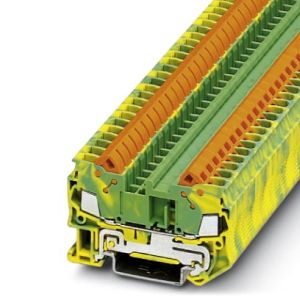

Standard Feed-Thru Terminal Block - QTC25-PE
SKU
#
78037390488
Manufacturer Series:
QTC Series
Specifications
Type:
Standard Feed-Thru Terminal Block
Configuration/Wiring:
Single Tier 1-Circuit 2-Wire
Construction Style:
IEC
Wire Range:
20-14 AWG
Model Type:
QTC 2.5-PE
Housing Material:
Polyamide 6.6
Housing Finish:
Green/Yellow
Mounting:
DIN Rail, 35mm
Block Width:
0.24 in. (6.2mm)
Block Length:
2.46 in. (62.6mm)
Description
Terminal Feed-Thru Blocks, Standard: Type - Standard Feed-Thru Terminal Block; Configuration/Wiring - Single Tier 1-Circuit 2-Wire; Construction Style - IEC; Wire Range - 20-14 AWG; Model Type - QTC 2.5-PE; Housing Material - Polyamide 6.6; Housing Finish - Green/Yellow; Mounting - DIN Rail, 35mm; Block Width - mm - 6.2 mm; Block Width - in - 0.24"; Block Length - in/mm - 2.46/62.6; Manufacturer Series - QTC Series
