PHOENIX CONTACT
#3036110

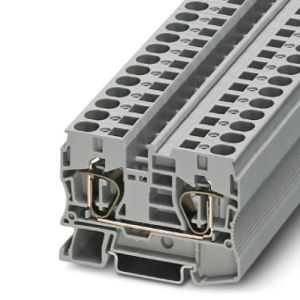

Standard Feed-Thru Terminal Block 57A 1000V - ST10
SKU
#
78037396116
Manufacturer Series:
ST Series
Specifications
Type:
Standard Feed-Thru Terminal Block
Configuration/Wiring:
Single Tier 1-Circuit 2-Wire
Construction Style:
IEC
Rating - Voltage:
1000V
Rating - Amps:
57A
Wire Range:
24-6 AWG
Model Type:
ST 10
Wire Terminal:
Spring Clamp
Housing Material:
Polyamide 6.6
Housing Finish:
Gray
Mounting:
DIN Rail, 35mm
Block Width:
0.4 in. (10.2mm)
Block Length:
2.81 in. (71.5mm)
Description
Terminal Feed-Thru Blocks, Standard: Type - Standard Feed-Thru Terminal Block; Configuration/Wiring - Single Tier 1-Circuit 2-Wire; Construction Style - IEC; Rating - Voltage - 1000V; Rating - Amps - 57A; Wire Range - 24-6 AWG; Model Type - ST 10; Wire Terminal - Spring Clamp; Housing Material - Polyamide 6.6; Housing Finish - Gray; Mounting - DIN Rail, 35mm; Block Width - mm - 10.2 mm; Block Width - in - 0.40"; Block Length - in/mm - 2.81/71.5; Manufacturer Series - ST Series
