PHOENIX CONTACT
#3206429

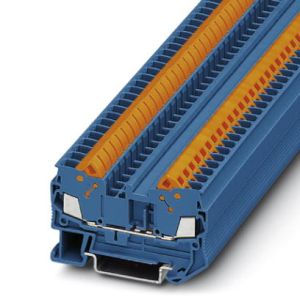

Standard Feed-Thru Terminal Block 24A 800V - QTC25BU
SKU
#
78037390487
Manufacturer Series:
QTC Series
Specifications
Type:
Standard Feed-Thru Terminal Block
Configuration/Wiring:
Single Tier 1-Circuit 2-Wire
Construction Style:
IEC
Rating - Voltage:
800V
Rating - Amps:
24A
Wire Range:
20-14 AWG
Model Type:
QTC 2.5 BU
Wire Terminal:
Screw
Housing Material:
Polyamide 6.6
Housing Finish:
Blue
Mounting:
DIN Rail, 35mm
Block Width:
0.24 in. (6.2mm)
Block Length:
2.46 in. (62.6mm)
Description
Terminal Feed-Thru Blocks, Standard: Type - Standard Feed-Thru Terminal Block; Configuration/Wiring - Single Tier 1-Circuit 2-Wire; Construction Style - IEC; Rating - Voltage - 800V; Rating - Amps - 24A; Wire Range - 20-14 AWG; Model Type - QTC 2.5 BU; Wire Terminal - Screw; Housing Material - Polyamide 6.6; Housing Finish - Blue; Mounting - DIN Rail, 35mm; Block Width - mm - 6.2 mm; Block Width - in - 0.24"; Block Length - in/mm - 2.46/62.6; Manufacturer Series - QTC Series
