PHOENIX CONTACT
#3240166

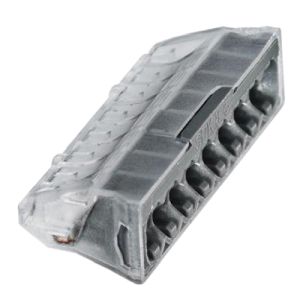

Socket Terminal Block, 450 V, 24 A, 20 to 14 AWG, 15.6mm L
SKU
#
78037368933
Specifications
Type:
Socket Terminal Block
Configuration/Wiring:
Single Tier 8 Circuit 8 Wire
Construction Style:
IEC
Rating - Voltage:
450 V
Rating - Amps:
24 A
Wire Range:
20 to 14 AWG
Wire Terminal:
Push-in
Housing Material:
Polyamide/Polycarbonate
Housing Finish:
Transparent
Mounting:
Free-Hanging
Temperature Rating - max:
90°C
Temperature Rating - min:
-40°C
Block Width:
39.2mm
Block Length:
15.6mm
Block Height:
8.9mm
