PHOENIX CONTACT
#3001420

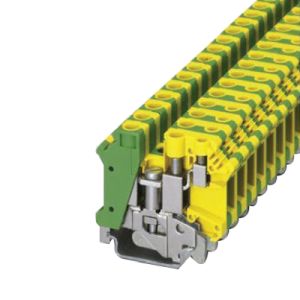

Ground Modular Terminal Block, 57 A, 20 to 6 AWG, 53mm L
SKU
#
78037389447
Specifications
Type:
Ground Modular Terminal Block
Configuration/Wiring:
Single Tier 1 Circuit 3 Wire
Construction Style:
IEC
Rating - Amps:
57 A
Wire Range:
20 to 6 AWG
Wire Terminal:
Screw
Housing Material:
Polyamide
Housing Finish:
Green/Yellow
Mounting:
NS 35/7.5, NS 35/15, NS 32 DIN Rail
Temperature Rating - max:
105°C
Temperature Rating - min:
-60°C
Block Width:
10.2mm
Block Length:
53mm
Block Height:
54.5mm
