PHOENIX CONTACT
#3206542

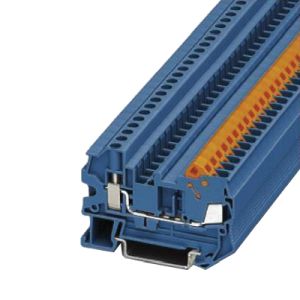

Feed-through Terminal Block, 800 V, 24 A, 20 to 14 AWG
SKU
#
78037390498
Specifications
Type:
Feed-Through Terminal Block
Configuration/Wiring:
Single Tier 1 Circuit 2 Wire
Construction Style:
IEC
Rating - Voltage:
800 V
Rating - Amps:
24 A
Wire Range:
20 to 14 AWG
Wire Terminal:
Screw
Housing Material:
Polyamide
Housing Finish:
Blue
Mounting:
NS 35/7.5, NS 35/15 DIN Rail
Temperature Rating - max:
105°C
Temperature Rating - min:
-60°C
Block Width:
6.2mm
Block Length:
62.6mm
Block Height:
50.3mm
