PHOENIX CONTACT
#3035292

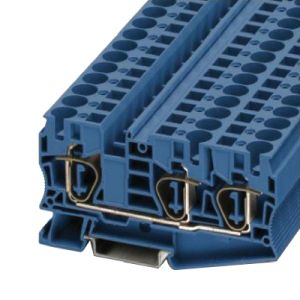

Feed-through Terminal Block, 1000 V, 57 A, 24 to 6 AWG
SKU
#
78037369432
Specifications
Type:
Feed-Through Terminal Block
Configuration/Wiring:
Single Tier 1 Circuit 3 Wire
Construction Style:
IEC
Rating - Voltage:
1000 V
Rating - Amps:
57 A
Wire Range:
24 to 6 AWG
Wire Terminal:
Spring Cage
Housing Material:
Polyamide
Housing Finish:
Blue
Mounting:
NS35/7.5 DIN Rail
Temperature Rating - max:
105°C
Temperature Rating - min:
-60°C
Block Width:
10.2mm
Block Length:
95.4mm
Block Height:
50.3mm
