PHOENIX CONTACT
#3036466

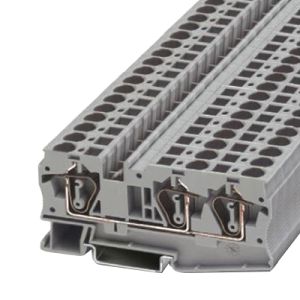

Feed-through Terminal Block, 1000 V, 41 A, 24 to 8 AWG
SKU
#
78037389868
Specifications
Type:
Feed-Through Terminal Block
Configuration/Wiring:
Single Tier 1 Circuit 3 Wire
Construction Style:
IEC
Rating - Voltage:
1000 V
Rating - Amps:
41 A
Wire Range:
24 to 8 AWG
Wire Terminal:
Spring Cage
Housing Material:
Polyamide
Housing Finish:
Gray
Mounting:
NS35/7.5 DIN Rail
Temperature Rating - max:
105°C
Temperature Rating - min:
-60°C
Block Width:
8.2mm
Block Length:
90.5mm
Block Height:
43.5mm
