WEIDMUELLER
#1123490000

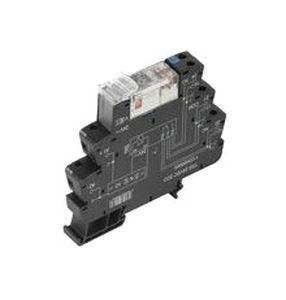

Relay Module, 24 VDC Operating, 8A, Din Rail, TS 35 Mount
SKU
#
03224890583
Specifications
Block Type:
Relay Module
Voltage - Maximum Switching:
250 VAC/VDC
Voltage - Operating:
24 VDC
Amps:
8A
Contacts:
(2) C.O., DPDT Changeover
On Delay:
6ms
Off Delay:
18ms
AWG Range:
26-14 AWG
Contact Style:
Screw and Tension Clamp
Material:
Silver-Nickel (Contact)
Model Type:
TRS
Mounting:
DIN Rail, TS 35
Temperature Rating:
-40 to 60 Degree C (-40 to 140 Degree F)
Block Width:
12.8mm
Description
WEID 1123490000 TRS 24VDC 2CO
