SIEMENS
#3TX7004-1LB00

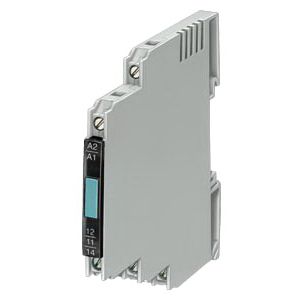

Coupling Relay, 24VAC/DC, 3A, (1) SPDT Changeover, Screw Clamp Contact, DIN Rail/TH35 Mounting
SKU
#
75455443099
Manufacturer Series:
3TX7
Specifications
Country of Origin:
Czech Republic - Subject to change
Block Type:
Terminal Coupling Relay
Voltage - Maximum Switching:
250VAC/DC
Voltage - Operating:
24VAC/DC
Amps:
3A
Contacts:
(1) SPDT Changeover
Contact Style:
Screw
Mounting:
DIN Rail, TH35
Temperature Rating:
-25 to 60 Degree C (-13 to 140 Degree F)
Block Width:
6.2mm
Description
Terminal Blocks Sectional Relay Blocks: Block Type - Terminal Coupling Relay; Voltage - Maximum Switching - 250VAC/DC; Voltage - Operating - 24VAC/DC; Amps - 3A; Contacts - (1)SPDT Changeover; Contact Style - Screw; Mounting - DIN Rail, TH35; Temperature Rating - -25 deg C to 60 deg C; Block Width - 6.2 mm; Additional Information - Height: 78 mm, Depth: 81 mm; Manufacturer Series - 3TX7
Additional Info: Height: 78 mm, Depth: 81 mm
