SIEMENS
#3TX7004-1MB00

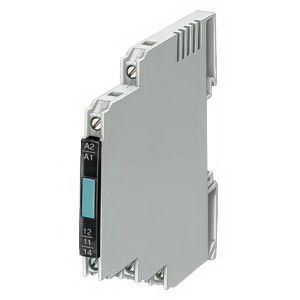

Coupling Relay, 24VAC/DC, 2A, (1) N.O., Screw Clamp Contact, DIN Rail/TH35 Mounting
SKU
#
75455449935
Manufacturer Series:
3TX7
Specifications
Block Type:
Terminal Coupling Relay
Voltage - Maximum Switching:
250VAC/DC
Voltage - Operating:
24VAC/DC
Amps:
2A
Contacts:
(1) NO
Contact Style:
Screw
Mounting:
DIN Rail, TH35
Temperature Rating:
-25 to 60 Degree C (-13 to 140 Degree F)
Block Width:
6.2mm
Description
Terminal Blocks Sectional Relay Blocks: Block Type - Terminal Coupling Relay; Voltage - Maximum Switching - 250VAC/DC; Voltage - Operating - 24VAC/DC; Amps - 2A; Contacts - (1) N.O.; Contact Style - Screw; Mounting - DIN Rail, TH35; Temperature Rating - -25 deg C to 60 deg C; Block Width - 6.2 mm; Additional Information - Height: 78 mm, Depth: 81 mm; Manufacturer Series - 3TX7
Additional Info: Height: 78 mm, Depth: 81 mm
