KEYSTONE
#8721

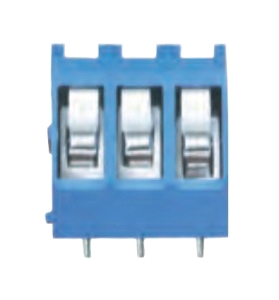

Block; Terminal; Modular; 3-Pos.; Blue; 250V; 16A; 5.00 mm Pitch; 22-14 AWG; 1-Level Block; PBT
SKU
#
78382496220
Specifications
Type:
PCB Terminal Block
Block Configuration:
1-Level
Number of Positions:
3-Pos.
Pitch - spacing:
5.00 mm
Voltage - Nominal:
250V
Current - nominal:
16A
Wire Size:
22-14 AWG
Wire Connection Type:
Screw
Wire Connection Angle:
45 Deg.
Block Connection Type:
4.5 x 1.0 mm Pin
Block Width:
15.6mm
Block Height:
12.5 mm
Block Depth:
12.5 mm
Temperature Rating:
-30 to 120 deg C
Material:
PBT
Color:
Blue
Description
These versatile PC terminal blocks provide a quick and easy method to attach wire leads to a circuit board. Multiple units may be interlocked for strips as long as 24 positions inline. Because of accumulating tolerances, we do not recommend longer strips.
