EATON BUSSMANN SERIES
#16200-2

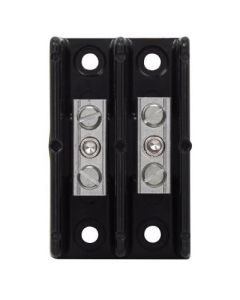

Power Terminal Block, 2 P, 600 VAC/DC, 115 A
SKU
#
05171220783
Manufacturer Series:
Series 162
Specifications
Country of Origin:
Mexico - Subject to change
Type:
Power Terminal Block
Poles:
2P
Rating - Voltage:
600V AC/DC
Rating - Amps:
115 A
Terminal Capacity-Size:
14 to 2 AWG CU, 8 to 2 AWG AL Line and Load
Terminal Type:
Screw
Base Style - Mounting:
SMD/SMT
Material - Terminal:
Aluminum
Material - Housing:
Molded Thermoplastic
Housing Finish:
Black
Operating Temperature:
-4° to +248°F
Length:
2.7 in.
Description
Bussmann™ series splicer blocks allow for increasing or decreasing wire size within a circuit to accommodate different connections from the power source to the branch load. Splicer blocks are available for wire sizes upto 500 MCM and amp ratings upto 760
