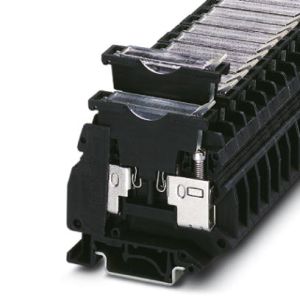

PHOENIX CONTACT 0920083 Terminal Block Plug-In Component Housings

Specifications

Type: Pluggable Terminal Housing

Component Type: Disconnect or Fuse Plug

Configuration/Wiring: Single Tier 1-Circuit

Construction Style: IEC

Rating - Voltage: 600V

Rating - Current: 40A

Wire Range: 18-8 AWG

Model Type: USIG

Contact Style: Screw Clamp

Housing Material: Polyamide 6.6

Housing Finish: Black

Mounting: 32mm C Rail or 35mm DIN Rail

Block Width: 0.4 in. (10.2mm)

Temperature Rating - max: 125 deg C (257 deg F)

Description

Terminal Block Plug-In Component Housings: Type - Pluggable Terminal Housing; Component Type - Disconnect or Fuse Plug; Configuration/Wiring - Single Tier 1-Circuit; Construction Style - IEC; Rating - Voltage - 600V; Rating - Current - 40A; Wire Range - 18-8 AWG; Model Type - USIG; Contact Style - Screw Clamp; Housing Material - Polyamide 6.6; Housing Finish - Black; Mounting - 32mm C Rail or 35mm DIN Rail; Block Width - mm - 10.2 mm; Block Width - in - 0.40"; Temperature Rating - max - 125 deg C (257 deg F); Additional Information - Fuse Type: Glass 5x20, 5x25, 5x30, 6.3x32mm; Manufacturer Series - UK Series

Additional Info: Fuse Type: Glass 5x20, 5x25, 5x30, 6.3x32mm
