SIEMENS
#3RA22204AH260AP0

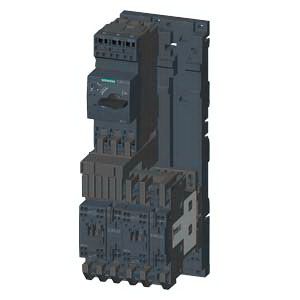

Sirius Starter, MSP Contactor/Starter Combination; Reversing; 40A; 11.0-16.0 FLA
SKU
#
66264390243
Manufacturer Series:
3RA22
Specifications
Motor FLA:
11 - 16
Rating Hp/Volts:
3PH: 5hp/220V, 5hp/230V, 10hp/460V, 10hp/480V, 10hp/575V, 10hp/600V
Type:
Motor Starter Protector MSP, Contactor/Starter Combination
Operation:
Reversing
Starter Type:
3RA2220
Starter Rating:
40A
Frame Size, Starter:
S0
Contactor Type:
3RT20
Phase:
3
Coil Voltage:
230V 50Hz
Overload Relay:
Adjustable
Description
Additional Info: Fuseless Load Feeders, Operating Temperature: -20 to 60 deg C (-4 to 140 deg F), Auxiliary Contact: 1NO 1NC, IP20, Mounting onto 60mm Standard Mounting Rail
