SIEMENS
#3RA22101DE152AP0

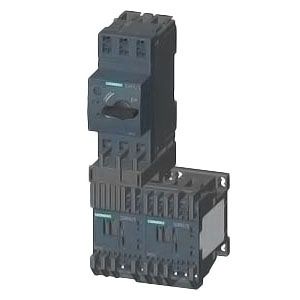

Sirius Starter, MSP Contactor/Starter Combination; Reversing; 16A; 2.2-3.2 FLA
SKU
#
66264390157
Manufacturer Series:
3RA22
Specifications
Motor FLA:
2.2 - 3.2
Rating Hp/Volts:
3PH: 0.5hp/200V, 0.5hp/208V, 0.75hp/200V, 0.75hp/230V, 1.5hp/460V, 1.5hp/480V, 2hp/575V, 2hp/600V
Type:
Motor Starter Protector MSP, Contactor/Starter Combination
Operation:
Reversing
Starter Type:
3RA2210
Starter Rating:
16A
Frame Size, Starter:
S00
Contactor Type:
3RT20
Phase:
3
Coil Voltage:
230V 50/60Hz
Overload Relay:
Adjustable
Description
Additional Info: Fuseless Load Feeders, Operating Temperature: -20 to 60 deg C (-4 to 140 deg F), IP20, Screw and Snap-on Mounting onto 35mm Standard Mounting Rail
