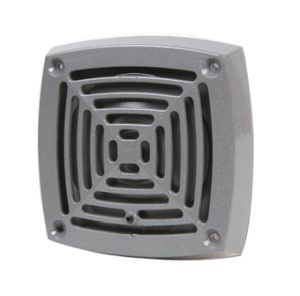

EDWARDS SIGNALING
#871P-C1
Vibrating Horn, 6 VDC, 0.7 A, NEMA 4X, 12, 12K, Gray
SKU
#
78264026159
Manufacturer Series:
871P
Specifications
Country of Origin:
Mexico - Subject to change
Type:
Heavy Duty Vibrating Horn
Application:
Panel Boards and Switchboards
Mounting:
Semi-Flush Panel
Operating Voltage:
6 VDC
Operating Current:
0.7 A
dB/10-Ft:
91 dB/10 ft.
Enclosure Material:
Die Cast
Enclosure Color:
Gray
Enclosure Rating:
NEMA 4X, 12, 12K
Size:
HxWxD: 4-5/8 x 4-5/8 x 1-7/8 in.
Description
The Edwards 871P DC Series are low-current, high decibel panel mount vibrating horns for heavy duty use. Supplied complete with gasket and UL listed to NEMA 4X enclosure requirements. Designed for semi-flush panel mounting, using supplied mounting template, or installation on a 4 in. square box. For NEMA 4X installation, mount to a NEMA 4X enclosure having a flat, smooth surface using supplied 1/8 in. gasket in accordance with the installation instructions provided with the unit.
