OMRON
#E53-CNBN2

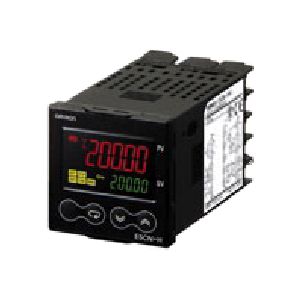

Temperature Controller, Thermocouple Input, 100-240VAC Nominal, Digital Display
SKU
#
40312364699
Manufacturer Series:
E5CN
Specifications
Type:
Temperature Controller
Inputs - Temperature:
Thermocouple
Inputs - Process:
Current/Voltage
Rating - Additional Outputs:
SPST-NO 250VAC 3A
Supply Voltage - Nominal:
100-240VAC
Temperature Input Type-Range:
Thermocouple: K, J, T, E, L, U, N, R, S, B, W, or PL II
Process Input Type-Range:
Current: 4-20mA, 0-20mA, Voltage: 1-5V, 0-5V, 0-10V
DIN Size:
1/16 DIN
Enclosure Rating:
IEC IP66, IP 20
Ambient Temperature:
-10 to 55 Degree C (14 to 131 Degree F)
Display Type:
Digital
Dimensions - WxHxD:
48x48x91 mm 1.89x1.89x3.58 in
Description
Single-Loop Temperature and Process Controllers: Type - Temperature Controller; Inputs - Temperature - Thermocouple; Inputs - Process - Current/Voltage; Rating - Additional Outputs - SPST-NO 250VAC 3A; Supply Voltage - Nominal - 100-240VAC; Temperature Input Type-Range - Thermocouple: K, J, T, E, L, U, N, R, S, B, W, or PL II; Process Input Type-Range - Current: 4-20mA, 0-20mA, Voltage: 1-5V, 0-5V, 0-10V; DIN Size - 1/16 DIN; Enclosure Rating - IEC IP66, IP 20; Ambient Temperature - -10 to 55 deg C (14 to 131 deg F); Display Type - Digital; Dimensions - WxHxD - 48x48x91 mm (1.89x1.89x3.58 in); Manufacturer Series - E5CN
