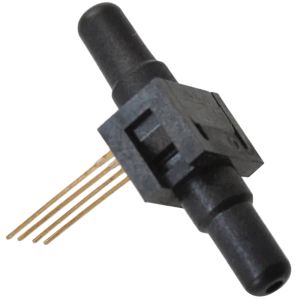

HONEYWELL
#26PCBFA3D
Pressure Sensor, 2.5 to 16 V, 5 psi
SKU
#
78454903100
Manufacturer Series:
26PC
Specifications
Type:
Differential Miniature Low Pressure Sensor
Operating Pressure Maximum:
5 psi
Voltage:
2.5 to 16 V
Housing Material:
Fluorosilicone
Process Connection:
0.2 in. Barbless Dual Male Tube
Output:
Wheatstone Bridge
Description
The 26PC-series miniature pressure sensors are small, cost effective devices intended for use with wet or dry media. These sensors feature proven sensing technology that uses a specialized piezoresistive micro machined sensing element to offer high performance, reliability, and accuracy. Each sensor contains four active piezoresistors that form a Wheatstone bridge. When pressure is applied, the resistance changes and the sensor provides a millivolt output signal that is proportional to the input pressure.
