HONEYWELL
#76072-B00000150-01
Pressure Switch 1/8 in.-27 NPT Male Air, Oil, Hydraulic Fluid
SKU
#
78454929099
Manufacturer Series:
5000 Series
Specifications
Type:
Pressure Switch
Operator Type:
Diaphragm
Pressure Media:
Air, Oil, Hydraulic Fluid
Circuit:
SPST NO/NC
Contact Rating:
1A at 120V AC
Operating Range:
14-24 psi
Enclosure Rating:
IP54
Connection:
1/8 in.-27 NPT Male
Description

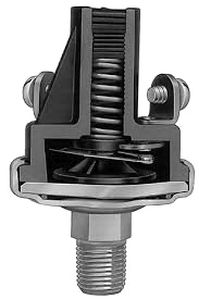

The 5000 Series switch is specifically designed to stand up to extended duty applications. This switch is factory set but capable of field adjustment. It features a Kapton diaphragm for compatibility with a wide variety of fluids and various terminations including a Metri-Pack connector that forms a tight seal when connected. Among the outstanding design benefits are its durable construction, compact size and enhanced set point integrity.
Additional Info: Temperature Range: -40 to 250 deg F, Cover Type: Glass Reinforced Polyester, Base: Plated Steel
